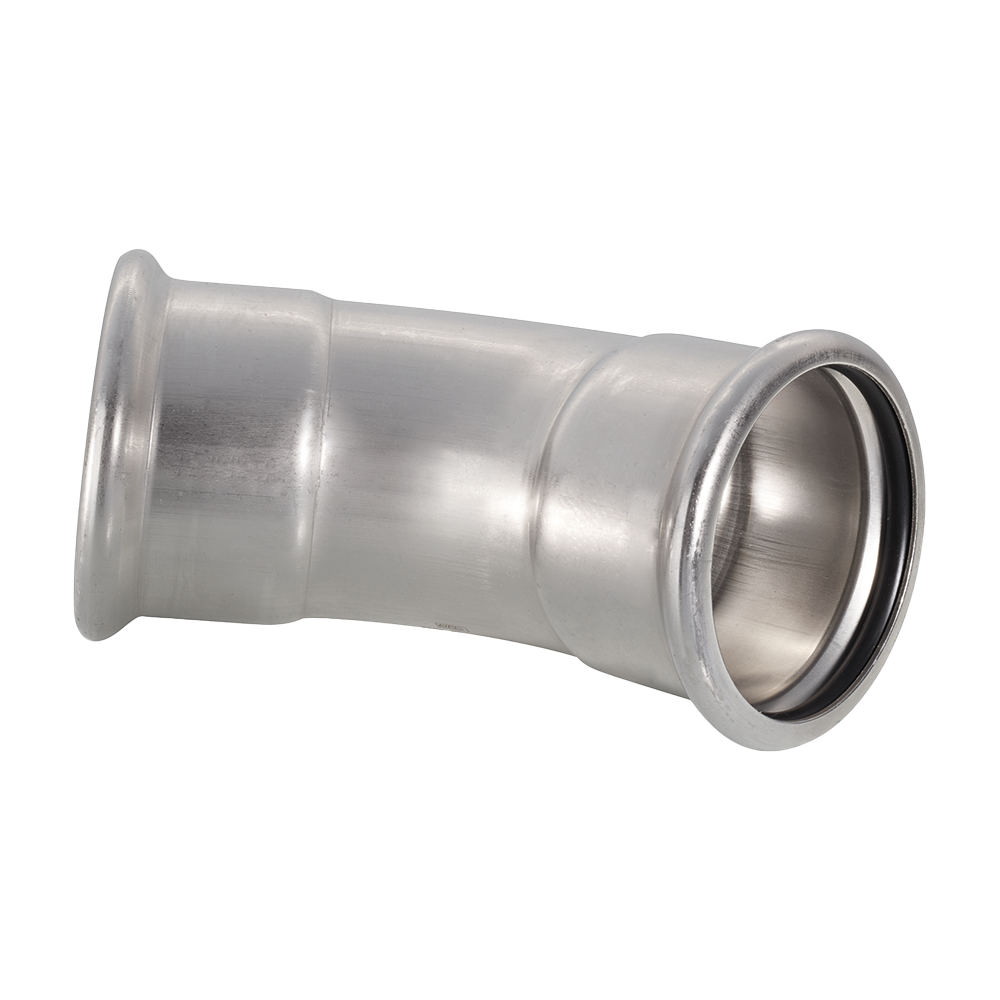

Obtuse Bend 108mm
Obtuse Bend in the >B< Press Inox XL range from Conex Bänninger
Product Code
PS5041 1080000
Size
108mm
Application
Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
PS5041 1080000
Size
108mm
Application
Hot And Cold Water
Bag Quantity
1
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Stainless Steel
O-Ring/Seal Material
EPDM

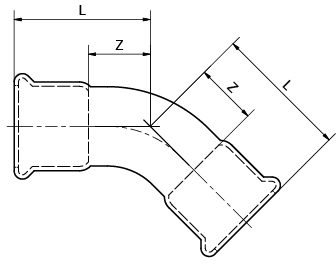

Dimensions (mm)
L
138
Z
64
