Reduced Branch Tee 22 x 15 x 22mm
Reduced Branch Tee in the >B< Sonic range from Conex Bänninger
Product Code
S130R022015022
Size
22 x 15 x 22mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Push
Specification
Overview
Product Code
S130R022015022
Size
22 x 15 x 22mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
5
Operating Temperature Range
-20°C to 95°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Copper
O-Ring/Seal Material
EPDM

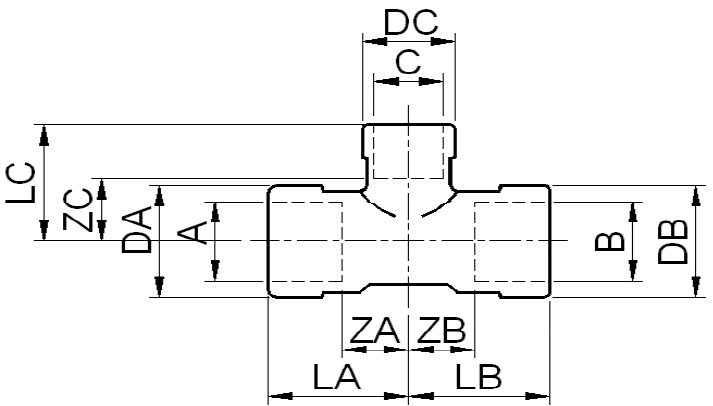

Dimensions (mm)
A
22
B
22
C
15
DA
29.7
DB
30
DC
21.2
LA
26.75
LB
26.75
LC
27.9
ZA
10
ZB
10
ZC
13
Installation
＞B＜ Sonic: Installation Sequence
