Reduced Coupler 1 3/8 x 1 1/8″
Reduced Coupler in the >B< ACR range from Conex Bänninger
Product Code
9600 011009000
Size
1 3/8 x 1 1/8"
Application
ACR
Installation Type
Brazing
Specification
Overview
Product Code
9600 011009000
Size
1 3/8 x 1 1/8"
Application
ACR
Bag Quantity
10
Operating Temperature Range
-100°C to 150°C
Maximum Operating Pressure (Bar)
40 Bar
Maximum Operating Pressure (kPa)
4000 kPa
Maximum Operating Pressure (PSI)
580 PSI
Materials
Fitting Material
Copper

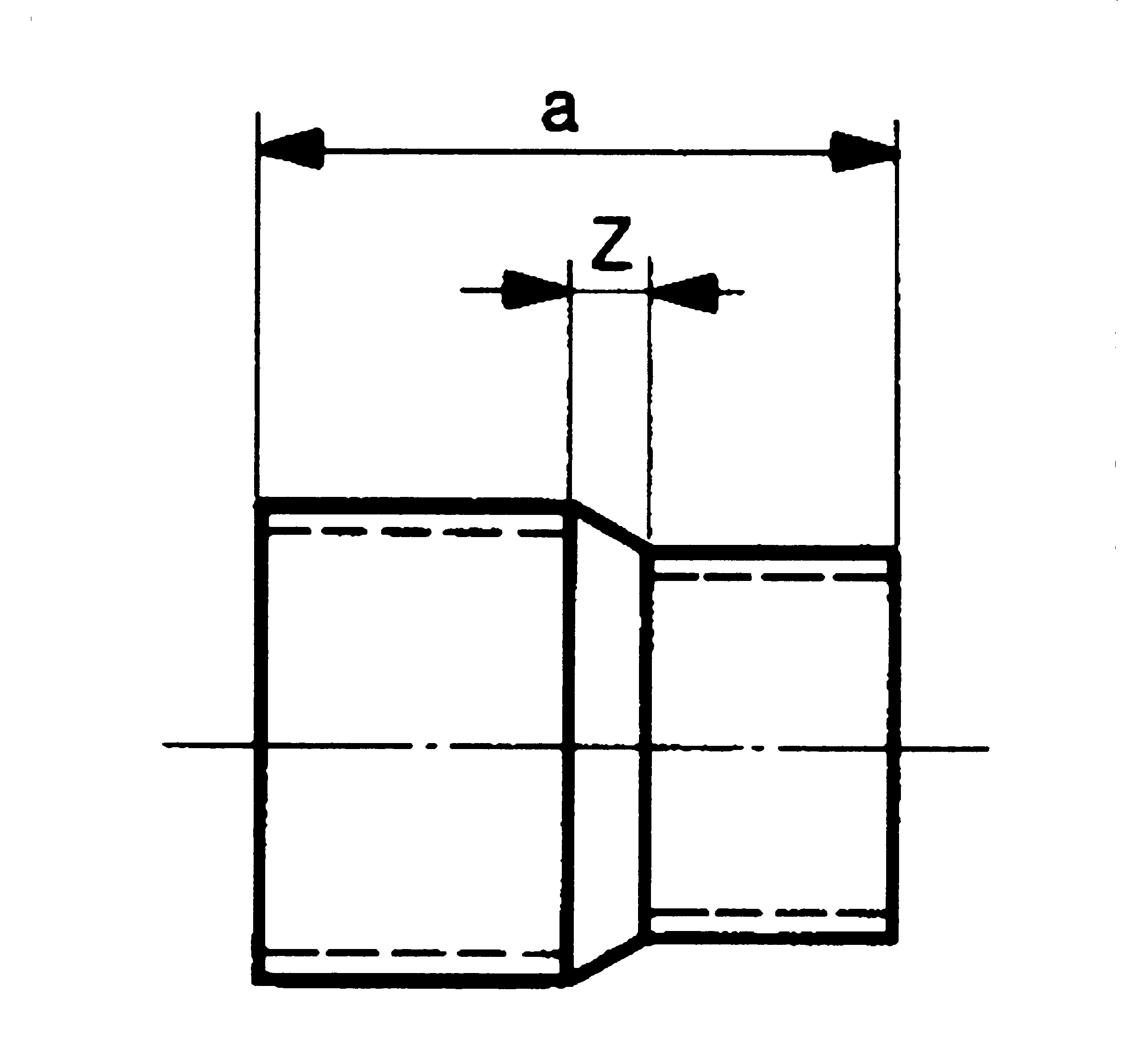

Dimensions (mm)
ZA
8
b
56
