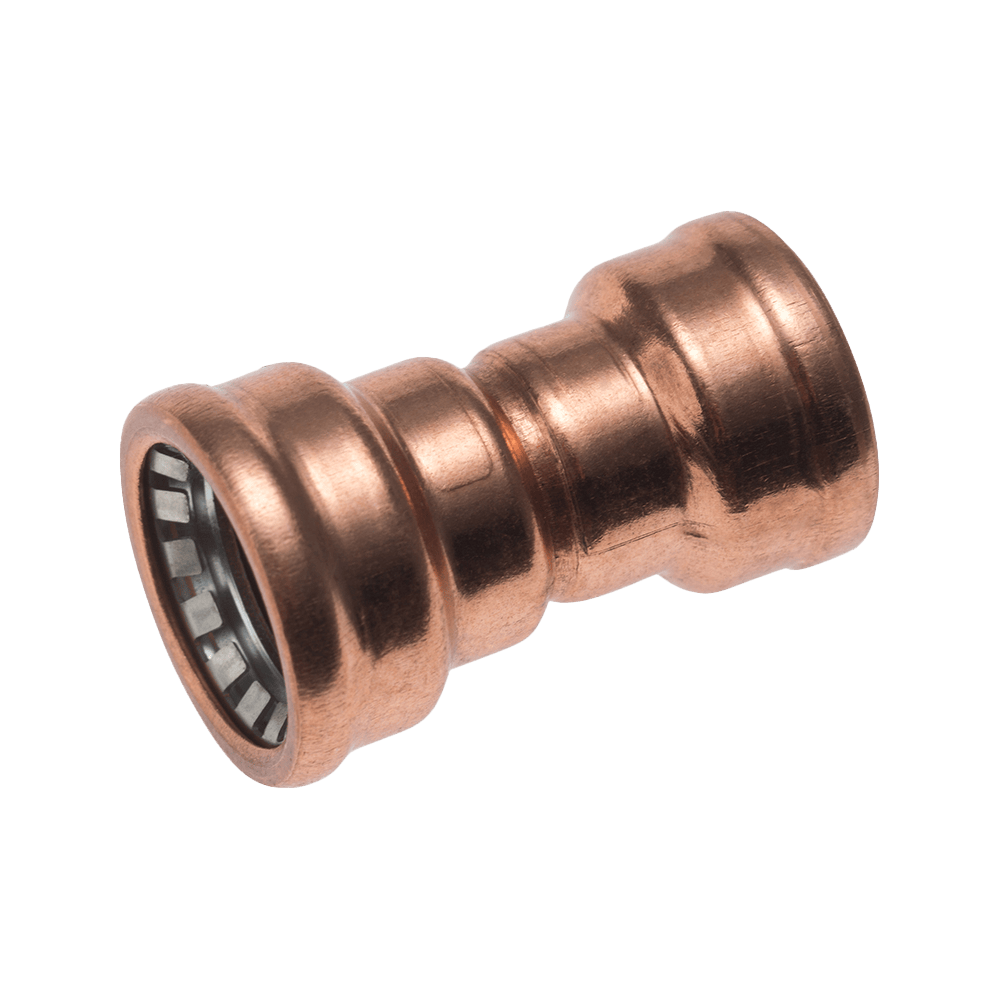

Reducing Coupler 14 x 12 mm
Reducing Coupler in the >B< Sonic range from Conex Bänninger
Product Code
S240 014012000
Size
14 x 12 mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Push
Specification
Overview
Product Code
S240 014012000
Size
14 x 12 mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
5
Operating Temperature Range
-20°C to 95°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Copper
O-Ring/Seal Material
EPDM

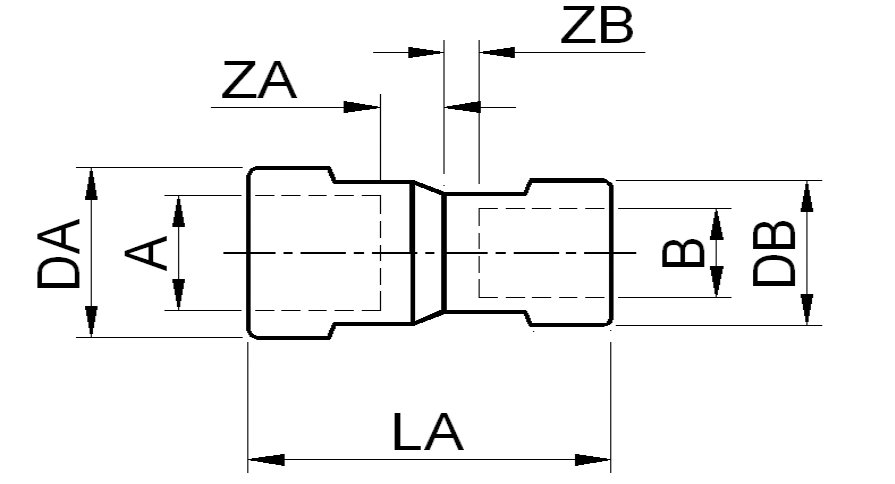

Dimensions (mm)
A
14
B
12
DA
21
DB
19
LA
38
LB
3
ZB
2.5
Installation
＞B＜ Sonic: Installation Sequence
