Stop End 1 5/8″

Stop End in the >B< MaxiPro range from Conex Bänninger

Product Code

MPA5301 0130001

Size

1 5/8"

Application

ACR

Installation Type

Press

Enquire Find a stockist

Specification Installation Downloads

Specification

Discover Features

Overview

Product Code

MPA5301 0130001

Size

1 5/8"

Application

ACR

Bag Quantity

1

Maximum Operating Pressure (Bar)

48 Bar

Maximum Operating Pressure (kPa)

4800 kPa

Maximum Operating Pressure (PSI)

700 PSI

Materials

Fitting Material

Copper

O-Ring/Seal Material

HNBR

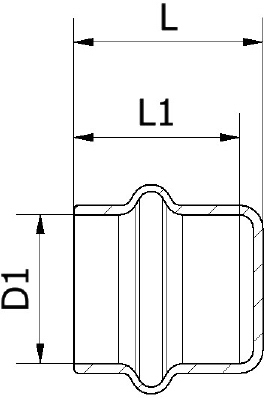

Dimensions (mm)

L

34

Z

30

Discover Features

Installation

＞B＜ MaxiPro Training Highlights at Dudley College

＞B＜ MaxiPro Evacuation

＞B＜ MaxiPro Refrigerant Charging

＞B＜ MaxiPro Strength Test

Downloads
