Straight Male Connector 22 x 3/4″
Male Straight Connector in the Conex Compression range from Conex Bänninger
Product Code
G041020302TA
Size
22 x 3/4"
Application
Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables
Installation Type
Compression
Specification
Overview
Product Code
G041020302TA
Size
22 x 3/4"
Application
Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables
Bag Quantity
10
Operating Temperature Range
-20°C to 110°C
Maximum Operating Pressure (Bar)
25 Bar
Maximum Operating Pressure (kPa)
2500 kPa
Maximum Operating Pressure (PSI)
362 PSI
Materials
Fitting Material
Brass

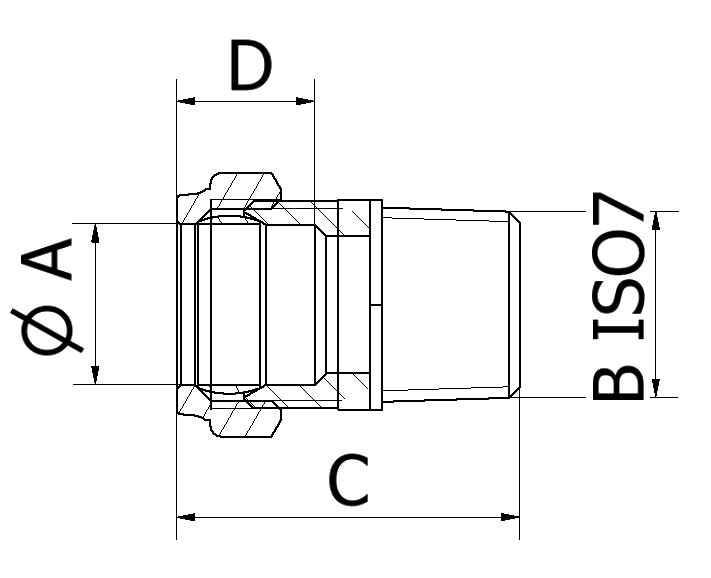

Dimensions (mm)
D
25
A
22
B
3/4"
C
48
Installation
Conex Compression Installation Sequence
Conex Compression is the versatile choice to connect services in a controversial build
Conex Compression
Conex Compression is the versatile choice to connect services in a controversial build
