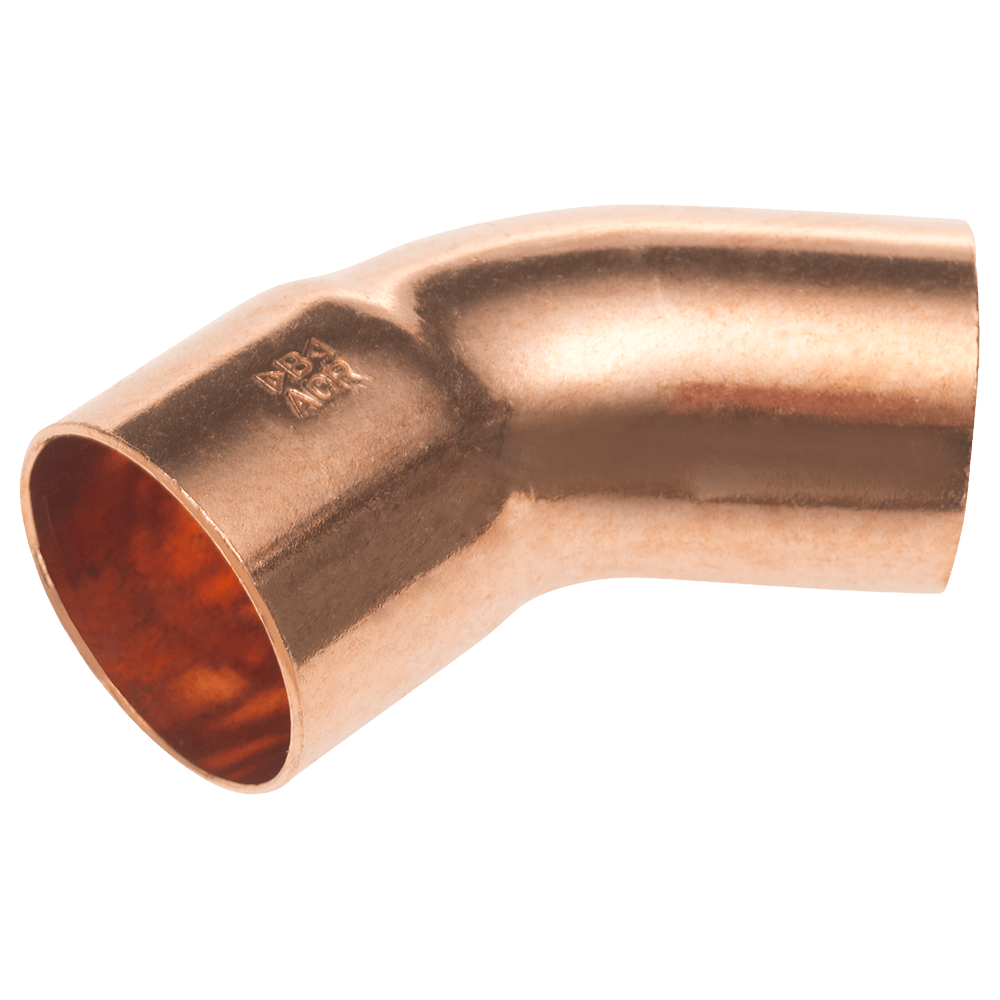

Street Obtuse Elbow 5/8″
Street Obtuse Elbow in the >B< ACR range from Conex Bänninger
Product Code
9606A005000000
Size
5/8"
Application
ACR
Installation Type
Brazing
Specification
Overview
Product Code
9606A005000000
Size
5/8"
Application
ACR
Bag Quantity
50
Operating Temperature Range
-100°C to 150°C
Maximum Operating Pressure (Bar)
40 Bar
Maximum Operating Pressure (kPa)
4000 kPa
Maximum Operating Pressure (PSI)
580 PSI
Materials
Fitting Material
Copper

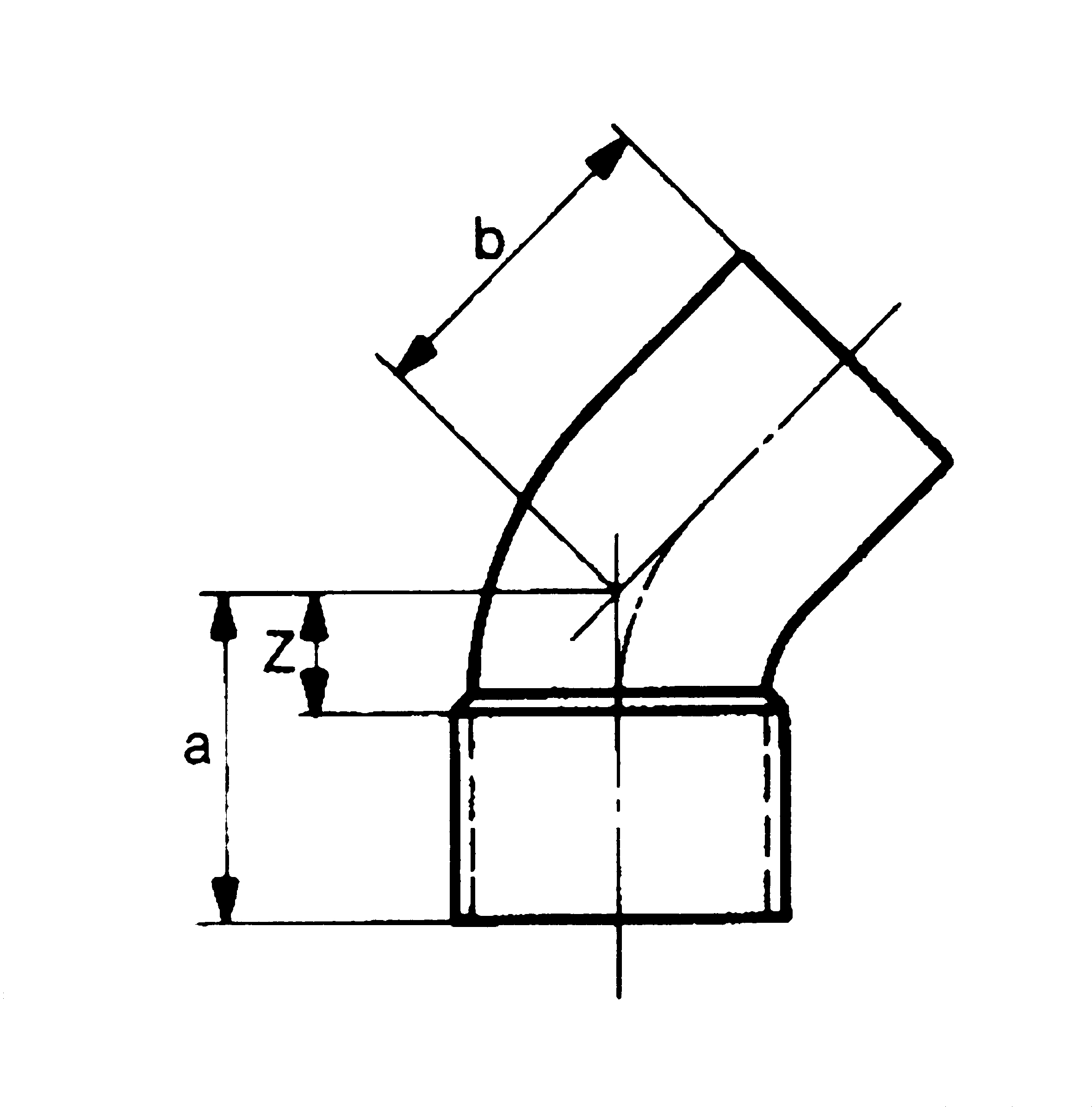

Dimensions (mm)
ZA
6
b
19
c
19
