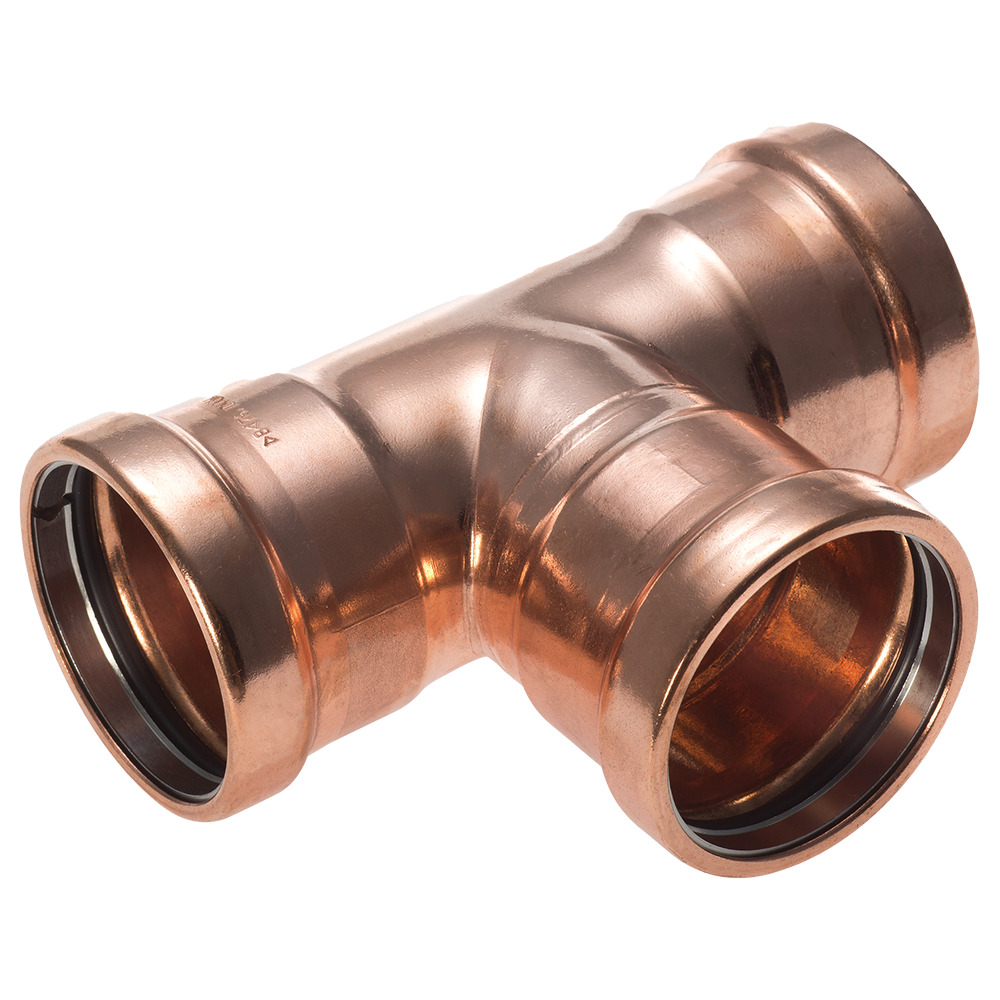

Tee – Equal 76mm
Tee - Equal in the >B< Press XL range from Conex Bänninger
Product Code
P5130 07676076
Size
76mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
P5130 07676076
Size
76mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
1
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Copper
O-Ring/Seal Material
EPDM

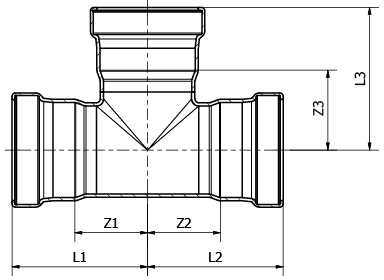

Dimensions (mm)
L1
207
L2
103
Z
53.5
Z1
53
Installation
＞B＜ Press XL: Installation Sequence
