Tee Reduced End 18 x 15 x 18mm
Tee Reduced End in the Conex Compression range from Conex Bänninger
Product Code
FEF5020601--
Size
18 x 15 x 18mm
Application
Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables
Installation Type
Compression
Specification
Overview
Product Code
FEF5020601--
Size
18 x 15 x 18mm
Application
Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables
Bag Quantity
10
Operating Temperature Range
-20°C to 110°C
Maximum Operating Pressure (Bar)
25 Bar
Maximum Operating Pressure (kPa)
2500 kPa
Maximum Operating Pressure (PSI)
362 PSI
Materials
Fitting Material
DZR Brass

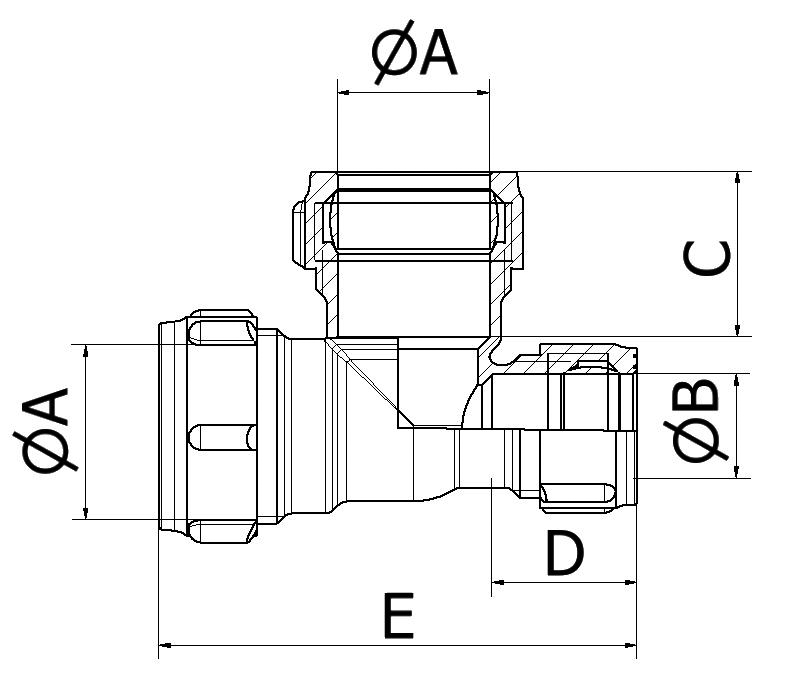

Dimensions (mm)
D
21
A
18
B
15
C
24
E
68
Installation
Conex Compression Installation Sequence
