Tee Reduced End 20 x 16 x 20mm
Tee Reduced End in the >B< Push range from Conex Bänninger
Product Code
BM8130 0202016
Size
20 x 16 x 20mm
Application
Cooling Systems, Hot And Cold Water
Installation Type
Push
Specification
Overview
Product Code
BM8130 0202016
Size
20 x 16 x 20mm
Application
Cooling Systems, Hot And Cold Water
Bag Quantity
10
Operating Temperature Range
-20°C to 95°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Brass
O-Ring/Seal Material
EPDM

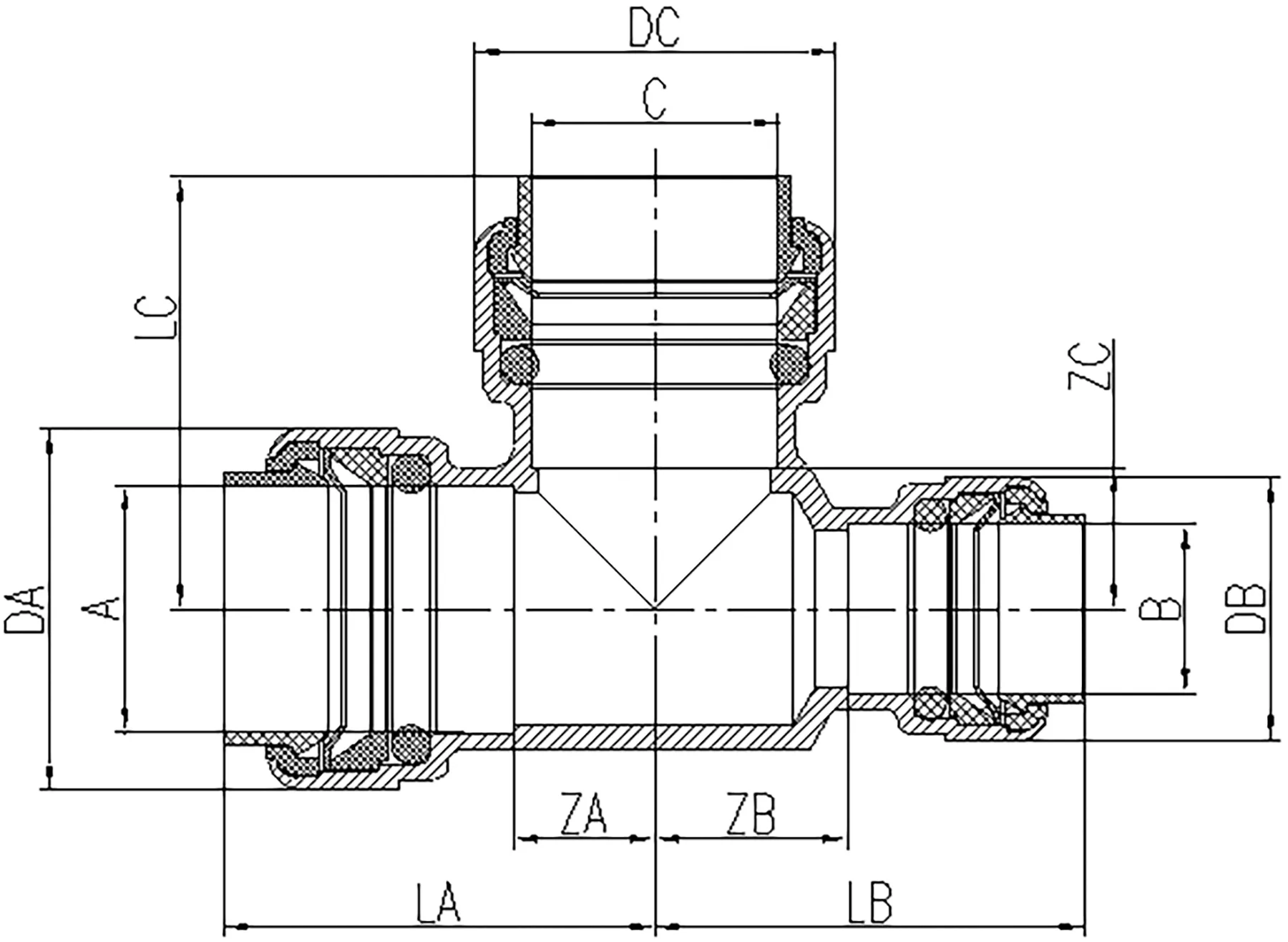

Dimensions (mm)
A
20
B
16
C
20
DA
30
DB
25
DC
30
LA
38
LB
39
LC
38
ZA
11
ZB
16
ZC
11
Installation
＞B＜ Push Installation Sequence
