Tee with Female Threaded Branch 89 x 89 x 2
Tee with Female Threaded Branch in the >B< Press XL range from Conex Bänninger
Product Code
P5130G08916089
Size
89 x 89 x 2
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
P5130G08916089
Size
89 x 89 x 2
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
1
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Copper
O-Ring/Seal Material
EPDM

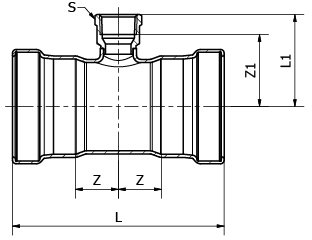

Dimensions (mm)
L1
195.5
L2
77.5
L3
46.5
Z
57
Z1
66.5
Installation
＞B＜ Press XL: Installation Sequence
