45° Bend 22mm

45° Bend in the Series 5000 range from Conex Bänninger

Product Code

5041022000000

Size

22mm

Application

Solar And Renewables

Installation Type

Brazing

Enquire
Specification Downloads

Specification

Discover Features
Overview

Product Code

5041022000000

Size

22mm

Application

Solar And Renewables

Bag Quantity

10

Operating Temperature Range

-20°C to 110°C

Maximum Operating Pressure (Bar)

16 Bar

Maximum Operating Pressure (kPa)

1600 kPa

Maximum Operating Pressure (PSI)

235 PSI

Materials

Fitting Material

Copper

Downloads

  • Serbia Declaration of conformity Series 4000 5000
    (
    pdf
    0.736 MB
    )
  • WRAS Series 5000
    (
    pdf
    0.269 MB
    )
  • WRAS Series 5000
    (
    pdf
    0.263 MB
    )
  • DVGW Series 5000
    (
    pdf
    0.583 MB
    )
  • Bureau Veritas
    (
    pdf
    0.583 MB
    )

    • Related products

    View full range
    Series 5000

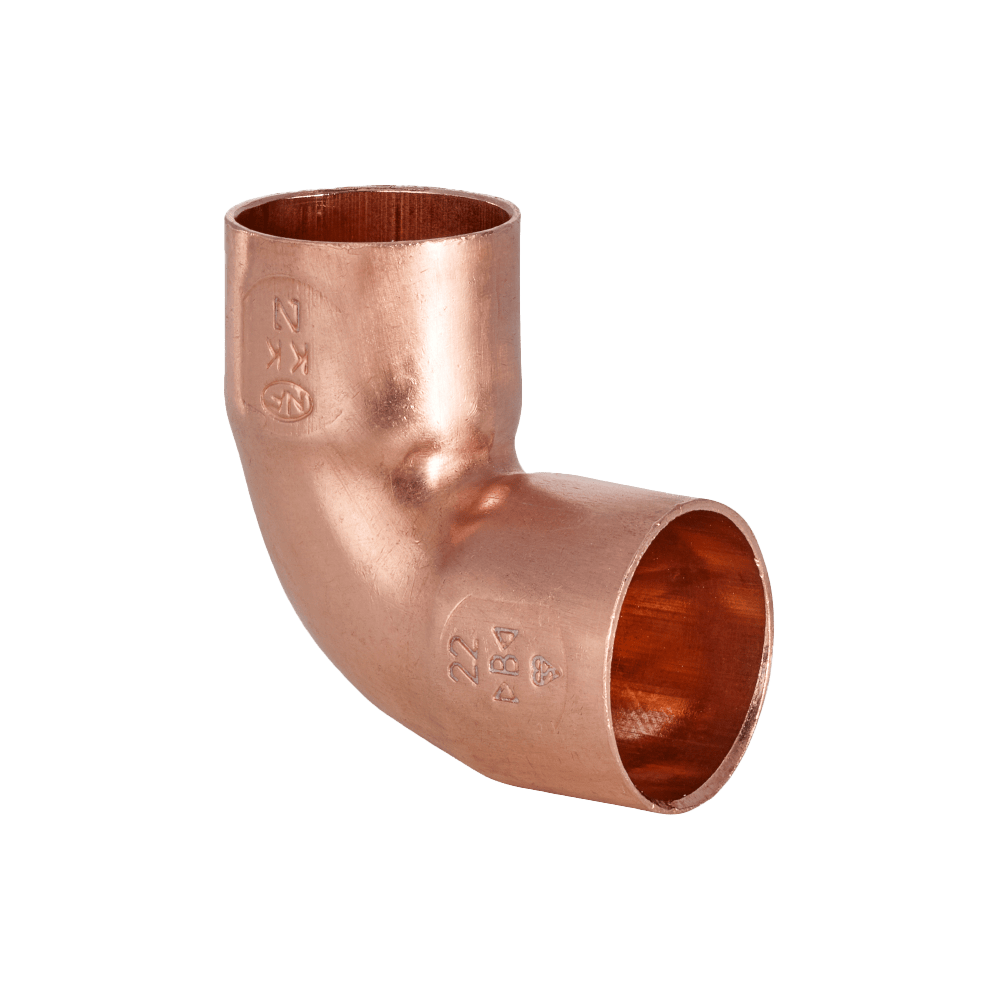

    90° Elbow 16mm
    Series 5000

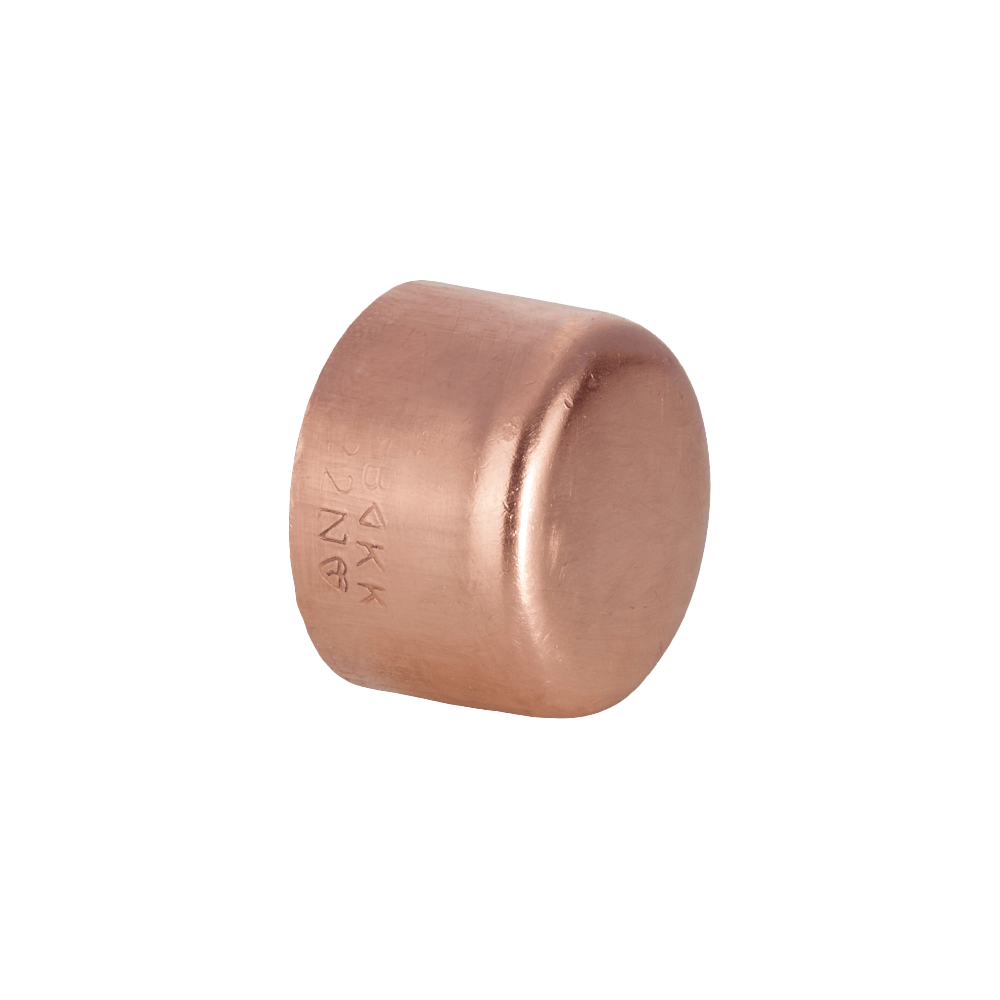

    Stop End 15mm
    Series 5000
    90° Street Elbow 22mm
    Series 5000

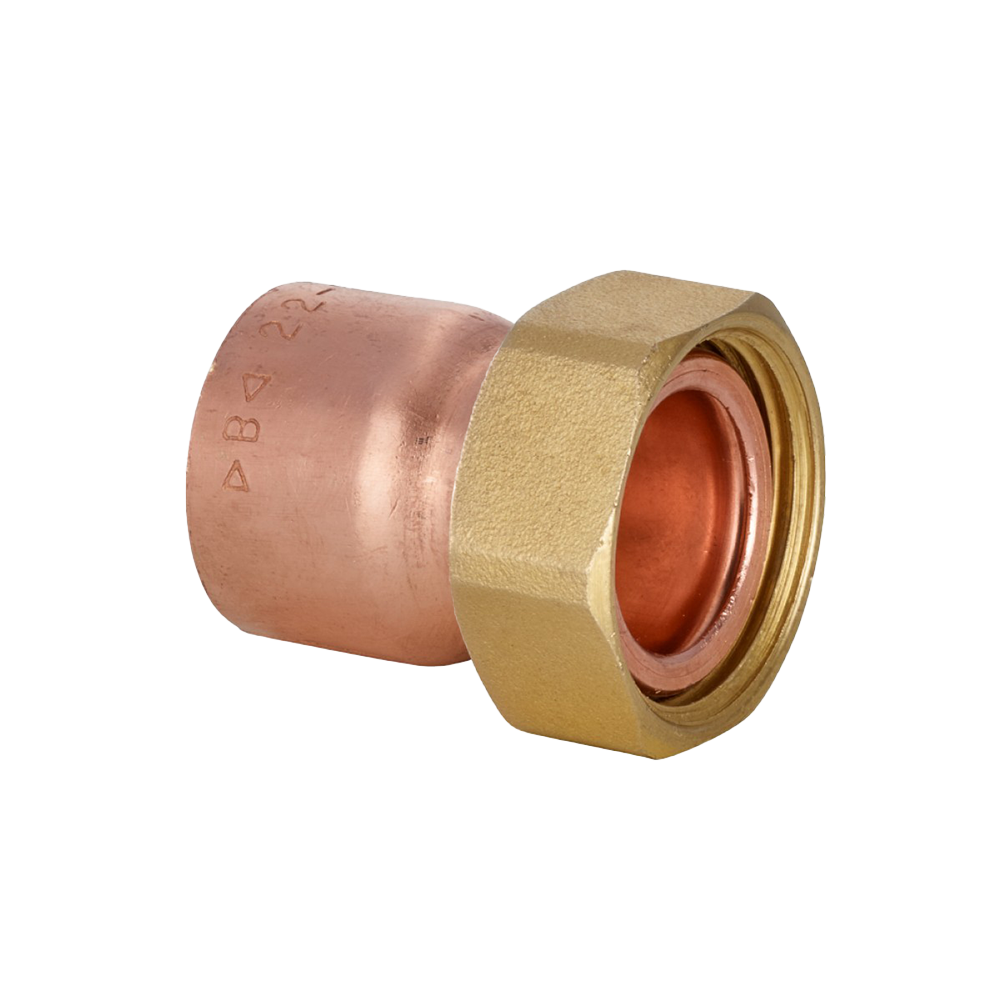

    Tap Connector 22 x 3/4″
