>B< Press Solar

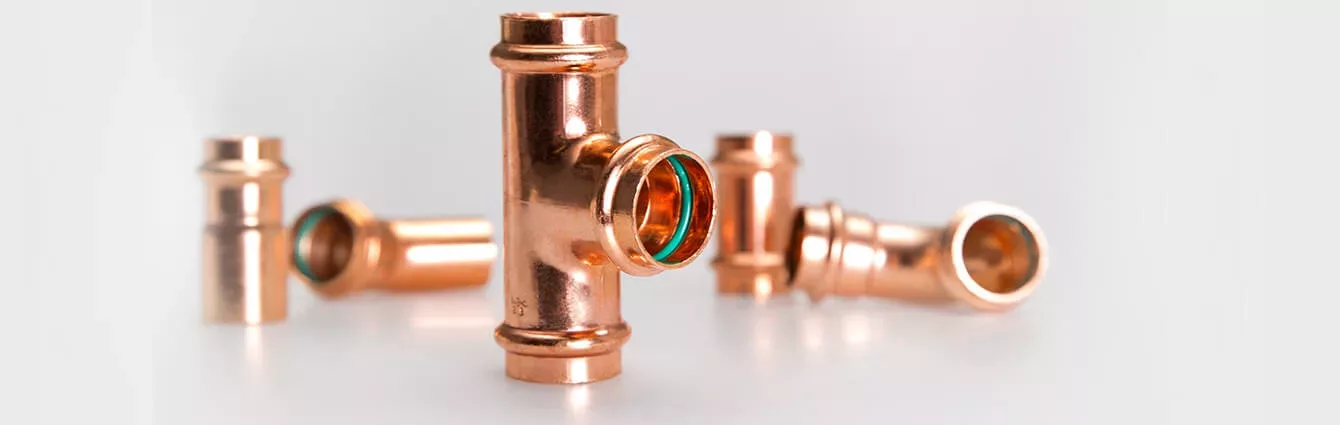

>B< Press Solar fittings are ideal for solar systems with vacuum and high vacuum tube panels as well as district heating systems and continuous temperatures above 100°C. Available in copper and red brass fittings, this flame-free range is designed with an innovative 3-point press system which ensures a secure, permanent leak-free joint.
View Range
Applications
Videos
Why choose us
Features

Applications

Solar And Renewables
Heating Systems
Suitable for:
  • Thermal solar systems
Suitable for:
  • Heating Systems

Why choose us

Flame-free connection, no hot works permit required

Unpressed joint indicator 01,-6,0 bar

Secure and 3-point press

Reduced installation time and cost

25 years product guarantee

Fully approved and certified

Component materials

Copper Cu-DHP
Red brass CC499-DW

Standards

BS EN 8537
Intended for connecting pipes in accordance with PN-EN 1057

Operating parameters

Maximum operating pressure: 10 bar
Operating temperature: up to 140°C
Short-term maximum temperature: up to 230°C

Approvals and certifications

EMI Hungary
SPF Switzerland
TYSK Ukraine



Sizes

From 15 to 28mm

Connection

Press fitting, jaws B profile

Sealing

Green FKM O-ring with PI function (leak-before-press indicator)

O-rings available separately up to 54 mm

Guarantee

When professionally installed, used and maintained in accordance with >B< Press Solar installation instructions, Conex Universal Ltd. guarantees that >B< Press Solar fittings supplied by Conex Universal Ltd. will be free of material defects resulting from errors in manufacture, for twenty-five (25 ) years from the date of first purchase by an end user.  For full terms and conditions please refer to the Product Guarantee Statement.

Installation

＞B＜ Press Solar: Installation Sequence
