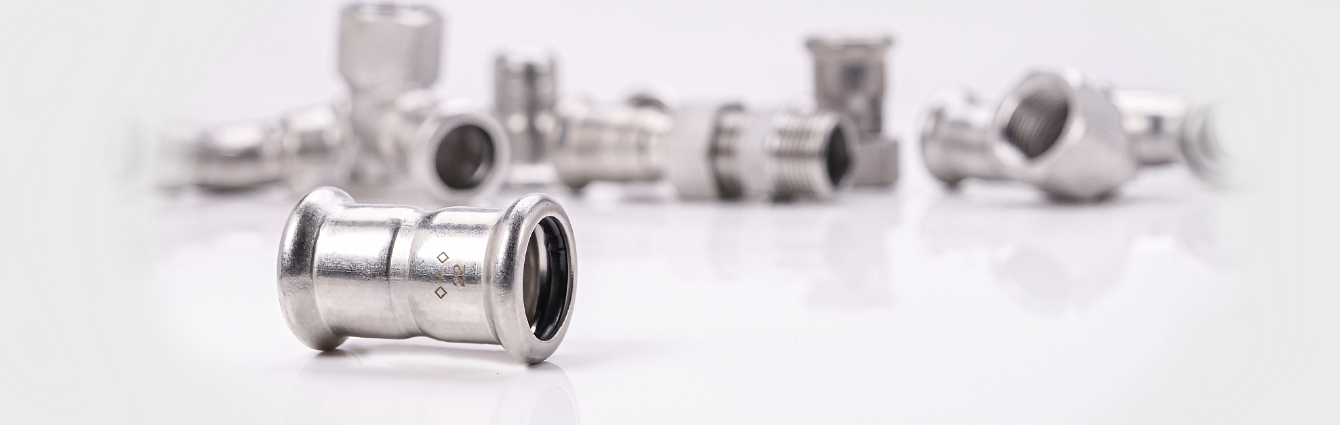

Press Inox 304

<A> Press Inox 304 ensures the highest hygiene standards and excellent corrosion resistance. It is an ideal solution for water-based heating systems installed in high-humidity environments, as well as for cooling systems and rainwater drainage. The system is not intended for drinking water applications.
View Range
Applications
Videos
Why choose us
Features
Downloads

Applications

Hot And Cold Water
Heating Systems
Cooling Systems
Suitable for:
  • Hot and cold water systems (not for drinking water)
  • Industrial and process water
Suitable for:
  • Heating systems
Suitable for:
  • Water-based air conditioning systems
  • Water cooling systems

Why choose us

Flame-free connection, no hot works permit required

Unpressed joint indicator 01,-6,0 bar

MProfile fitting

Corosion resistant

Fully approved and certified

10 years product guarantee

Component materials

Stainless steel grade 1.4301 (AISI 304) body

Application

Intended for connecting pipes in accordance with PN-EN 10312.

Approvals and certification

ITB Poland
WRAS Great Britain

Operating parameters

Maximum operating pressure: up to 10 bar at temperatures up to 110°C.

Sizes

From 15mm to 108mm

Connection

Press fitting, M-profile jaws or press collars M-profile Black EPDM O-ring with PI function (leak-before-press indicator)

Guarantee

Maximum operating pressure: up to 10 bar at temperatures up to 110°C.

Dimensionen

When professionally installed, used and maintained in accordance with <A> Press Inox 304 installation instructions, Conex Universal Ltd. guarantees that <A> Press Inox 304 fittings supplied by Conex Universal Ltd. will be free of material defects resulting from errors in manufacture, for ten (10) years from the date of first purchase by an end user. For full terms and conditions please refer to the Product Guarantee Statement.

Installation

＜A＞ Press Inox Installation Sequence

Downloads

  • Tubes INOX 304, 304XL Declaration of conformity
    (
    pdf
    0.233 MB
    )
  • A Press INOX 304 Declaration of Conformity
    (
    pdf
    0.243 MB
    )
  • WRAS APress INOX 304
    (
    pdf
    0.101 MB
    )
  • DVGW APress INOX
    (
    pdf
    0.168 MB
    )
  • APress Inox 304 Technical Brochure
    (
    pdf
    6.401 MB
    )
