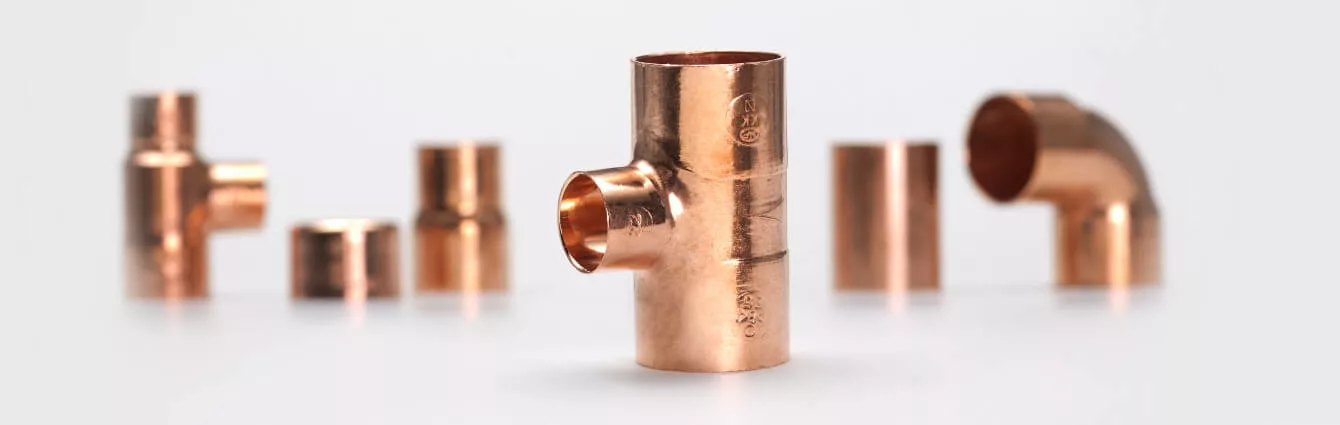

Medical Gas

Medical Gas fittings are intended for use with medical gases such as nitrogen, NO, CO₂, helium, oxygen, xenon, breathing air, and in vacuum systems. They are made of copper or copper alloys. This product line is specially adapted for medical gases and is available upon customer request.
View Range
Applications
Features

Applications

Medical
Suitable for:
  • Medical gases: nitrogen, nitric oxide (NO), carbon dioxide (CO₂), helium, oxygen, xenon

Independent tested and certified for cleanliness

Protective packaging to BOC/Medaes 3000000 specification

Anti-microbial

Corosion resistant

Fully approved and certified

25 years product guarantee

Component material

Body made of copper Cu-DHP (CW 024A)Hydrocarbon content less than 0.02 g/m²

Standards and Approvals

BOC

Application

Intended for connecting pipes in accordance with PN-EN 12735-1 and PN-EN 13348For medical gases: nitrogen, NO, CO₂, helium, oxygen, xenon, breathing air, and vacuum systems

Availability

Fittings are available upon request, individually packaged.

Sizes

From 6 mm to 159 mm

Joint

Hard soldering with solders containing a minimum of 2% silver

Guarantee

When professionally installed, used and maintained in accordance with Medical Gas installation instructions, Conex Universal Ltd. guarantees that Medical Gas fittings supplied by Conex Universal Ltd. will be free of material defects resulting from errors in manufacture, for twenty-five (25) years from the date of first purchase by an end user. For full terms and conditions please refer to the Product Guarantee Statement.
