>B< Flex

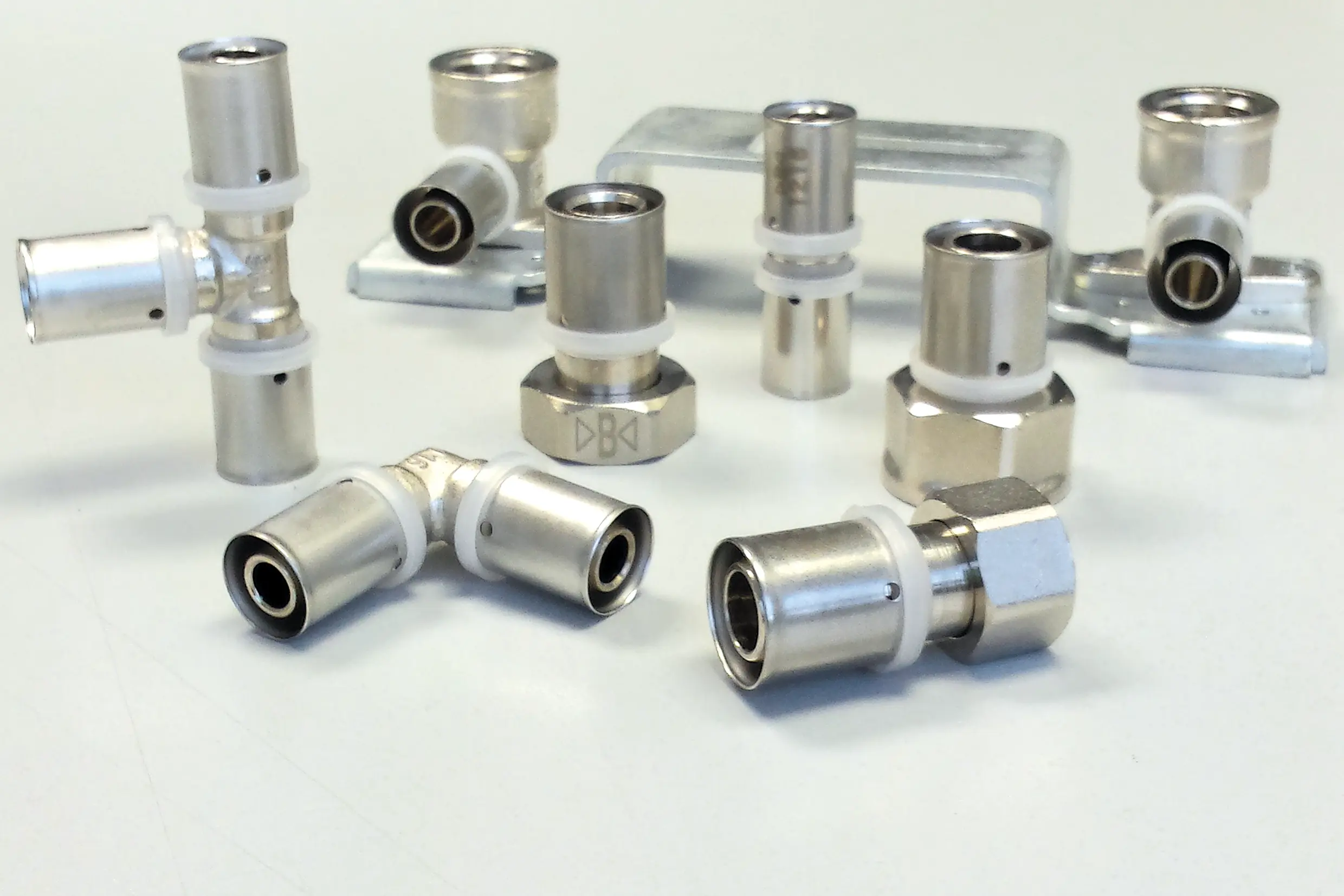

>B< Flex press fittings are designed for cold and hot water installations as well as heating systems. Made of brass, B Flex pipes are manufactured from high-quality plastic, ensuring durable and reliable connections. Both the inner and outer layers offer exceptional resistance to chemicals, corrosion and contamination, while the aluminum layer provides 100% protection against gas and oxygen permeation. Thanks to their easy installation without the need for an open flame, they are ideal for residential, commercial, and industrial applications.
View Range
Applications
Why choose us
Features

Applications

Hot And Cold Water
Heating Systems
Suitable for:
  • Drinking water
  • Rainwater
Suitable for:
  • Heating Systems

Why choose us

10 years product guarantee

Fully approved and certified

Flame-free connection, no hot works permit required

Reduced installation time and cost

Component material

Body made of brass CW617N (PN-EN 12165), natural finish, PERT/AL/PERT pipesManufactured in accordance with PN-EN 1254-3.

Application

Designed for connecting pipes in accordance with EN ISO 21003-1:2011.

Standards

PN-EN ISO 21003-3

Approvals and Certifications

PZH Poland
AENOR Spain
TYSK Ukraine



Operating Parameters

Maximum operating pressure: up to 10 bar at temperatures up to 95°C.

Sizes

From 16 mm to 32 mm

Connection

Pressing with jaws with U, TH, H, F, Rfz profile

Sealing

Double black EPDM O-ring in accordance with PN-EN 681-1.

Guarantee

When professionally installed, used and maintained in accordance with >B< Flex installation instructions, Conex Universal Ltd. guarantees that >B< Flex fittings supplied by Conex Universal Ltd. will be free of material defects resulting from errors in manufacture, for ten (10) years from the date of first purchase by an end user. A system guarantee of ten (10) years is also offered. For full terms and conditions please refer to the Product Guarantee Statement and System Guarantee Statement.
