>B< Oyster

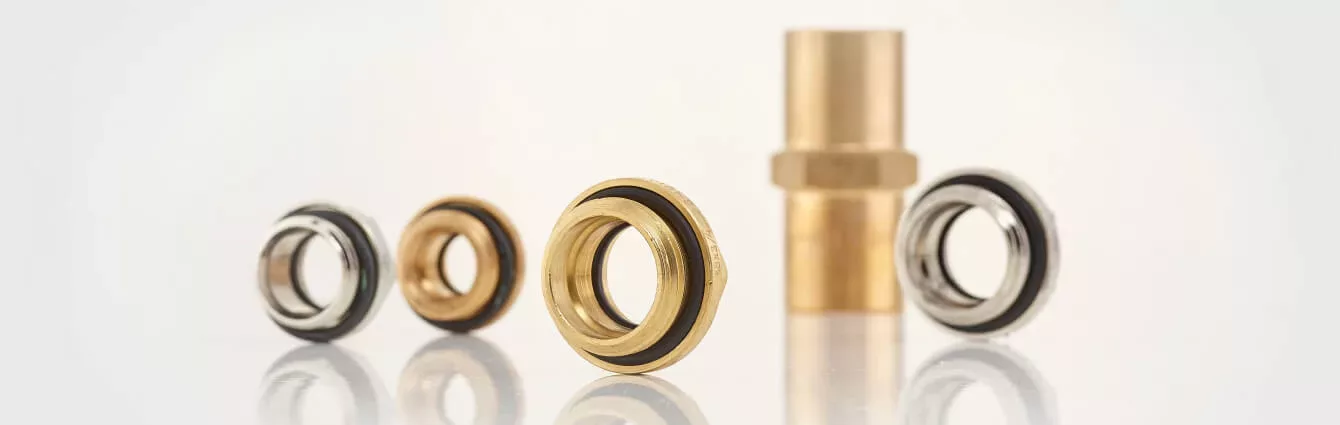

>B< Oyster is a transitional adaptor for threaded fittings and valves. A range that is simple in concept, but versatile and efficient in practice, it can be used in a wide range of applications. These flame-free fittings have two EPDM O-rings that seal against the tube and the fitting, which means a reliable joint is achieved – a fast, clean, economical installation without additional sealing material.
View Range
Applications
Videos
Why choose us
Features
Downloads

Applications

Hot And Cold Water
Heating Systems
Suitable for:
  • Drinking water
  • Hot and cold water systems
Suitable for:
  • Heating systems

Why choose us

Flame-free connection, no hot works permit required

Rotable, demontable, reusable

Suitable for connecting to ISO 228, ISO 7-1

Fast, clean, economical installation

Fully approved and certified

25 years product guarantee

Component material

Red brass CC499-DW
Yellow Brass CW617N

Application

Intended for connecting pipes manufactured in accordance with the PN-EN 1057 standard.

Operating Parameters

Working pressure: 16 bar at an operating temperature up to 30°C.
Working pressure: 10 bar at an operating temperature up to 95°C.
Maximum operating pressure of 16 bar.

Approvals and Certifications

DVGW Germany
ITB, PZH Poland
KIWA Netherlands
SVGW Switzerland
SZU Czech Republic
TYSK Ukraine
ÜA Austria

Sizes

From 10 mm x 3/8’’ to 54 mm x 2’’

Connection

Threaded, demountable

Sealing

Black EPDM O-ring

Guarantee

When professionally installed, used and maintained in accordance with >B< Oyster installation instructions, Conex Universal Ltd. guarantees that >B< Oyster fittings supplied by Conex Universal Ltd. will be free of material defects resulting from errors in manufacture, for twenty five (25) years from the date of first purchase by an end user. For full terms and conditions please refer to the Product Guarantee Statement.

Installation

＞B＜ Oyster Installation Video

Downloads

  • B Oyster Technical brochure
    (
    pdf
    0.876 MB
    )
  • B Oyster Range sheet
    (
    pdf
    0.884 MB
    )
  • B Oyster Sales Flyer
    (
    pdf
    0.696 MB
    )
