>B< Press Carbon

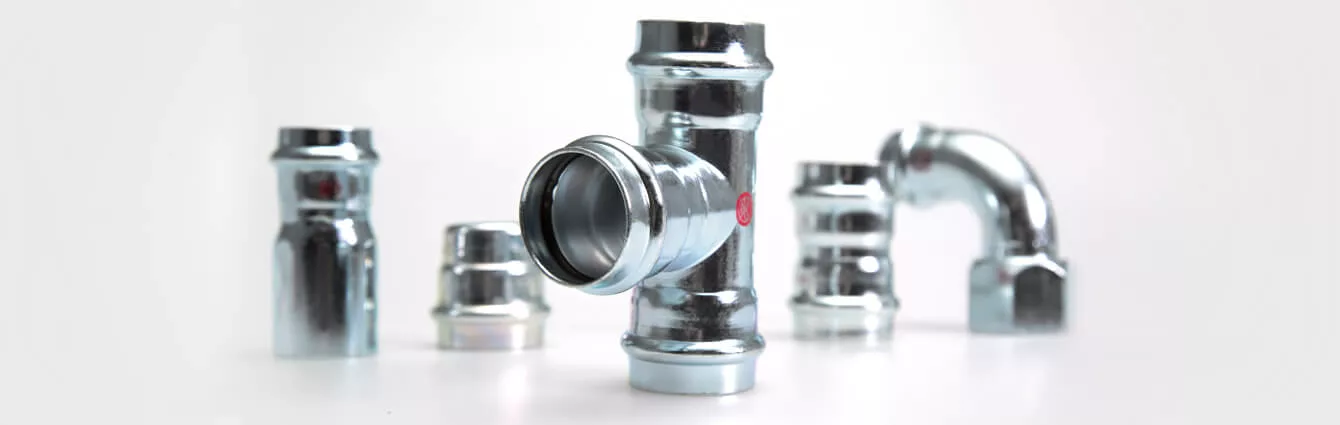

>B< Press Carbon is a carbon steel press fitting range featuring a permanent three-point press system with a B-profile. It is designed for connecting carbon steel pipes in heating, air conditioning and compressed air installations. The fittings are available in sizes from 15 to 108 mm and benefit from the patented unpressed joint indicator O-ring technology, which allows unpressed connections to be immediately identified during the leak test.
View Range
Applications
Why choose us
Features

Applications

Heating Systems
Cooling Systems
Solar And Renewables
Suitable for:
  • Heating installations – closed systems
Suitable for:
  • Chilled water
Suitable for:
  • Thermal solar systems
  • Rainwater

Why choose us

Flame-free connection, no hot works permit required

Unpressed joint indicator 01,-6,0 bar

Secure and 3-point press

Reduced installation time and cost

Fully approved and certified

5 years product guarantee

Component material

Carbon steel E 195 (1.0034), zinc-coatedManufactured in accordance with: EN 12266-1:2012

Application

Intended for connecting pipes in accordance with PN-EN 10305-2

Operating parameters

Operating pressure of 16 bar at operating temperatures of up to 110°C.Detailed operating parameters can be found in the >B< Press Carbon technical brochure (see below).

Sizes

From 15 mm to 54mm (jaws B-profile)From 76 mm to 108 mm (press collars M-profile)

Connection

Pressing with jaws with B profile or mother jaws with M profile depending on the size.

Sealing

Black EPDM O-ring with PI function (up to 54 mm) or green FKM O-ring

Guarantee

When professionally installed, used and maintained in accordance with >B< Press Carbon installation instructions, Conex Universal Ltd. guarantees that >B< Press Carbon fittings supplied by Conex Universal Ltd. will be free of material defects resulting from errors in manufacture, for five (5) years from the date of first purchase by an end user. A system guarantee of five (5) years is also offered. For full terms and conditions please refer to the Product Guarantee Statement and System Guarantee Statement.
