Flange adaptor 108mm
Flange adaptor in the >B< Press INOX 316 XL range from Conex Bänninger
Product Code
PS5230D1080000
Size
108mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
PS5230D1080000
Size
108mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
1
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Stainless Steel
O-Ring/Seal Material
EPDM

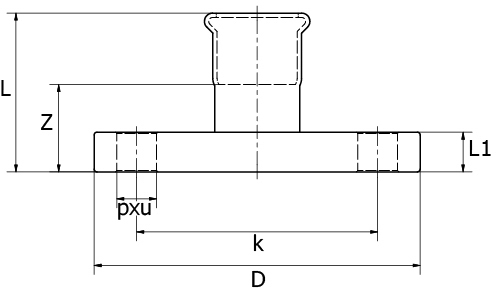

Dimensions (mm)
L
169
L1
20
Z
100
D
220
N
180
ZA
8
f
18
Installation
>B< Press Inox 316 XL Installation Sequence
