Flat Faced Connector 42 x 1 3/4″
Flat Faced Connector in the >B< Press range from Conex Bänninger
Product Code
P4355 04214000
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
P4355 04214000
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
1
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
300 PSI
Materials
Fitting Material
Red Brass
O-Ring/Seal Material
EPDM

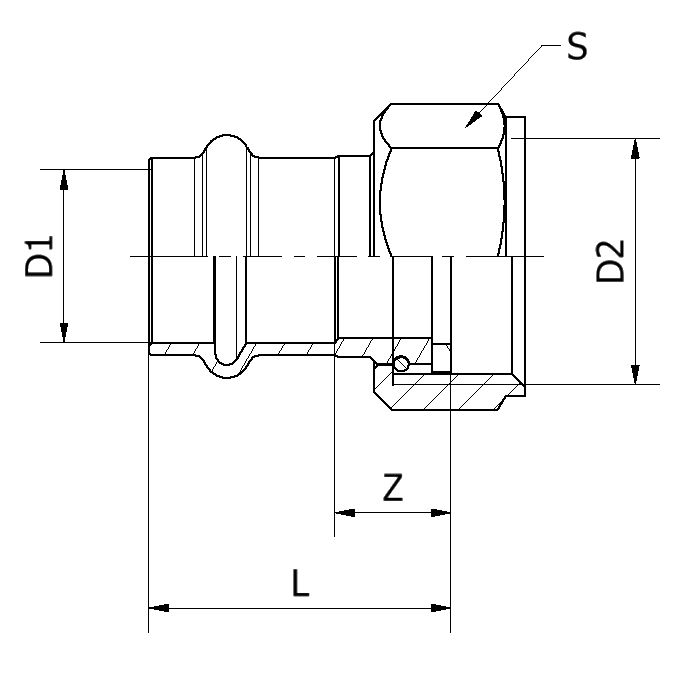

Dimensions (mm)
L
48.5
Z
41
S
58.5
