Tee – Reduced Female Threaded 1 x 1/2 x 1″
Tee Reduced Branch in the Series 8000M range from Conex Bänninger
Product Code
8130RM08004008
Size
1 x 1/2 x 1"
Application
Cooling Systems, Gas, Heating Systems, Solar And Renewables
Installation Type
Threaded
Specification
Overview
Product Code
8130RM08004008
Size
1 x 1/2 x 1"
Application
Cooling Systems, Gas, Heating Systems, Solar And Renewables
Bag Quantity
5
Operating Temperature Range
-20°C to 225°C
Maximum Operating Pressure (Bar)
25 Bar
Maximum Operating Pressure (kPa)
2500 kPa
Maximum Operating Pressure (PSI)
362 PSI
Materials
Fitting Material
Yellow Brass

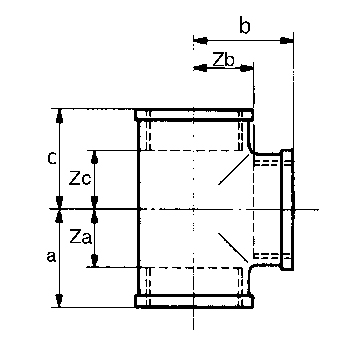

Dimensions (mm)
L
52
L1
14
L2
14
H
27.5
ød
11
Find the right system for the job
Need help finding the right system for the job?
Enquire
Series 8000M
Tee – Reduced Female Threaded 1 x 1/2 x 1″
