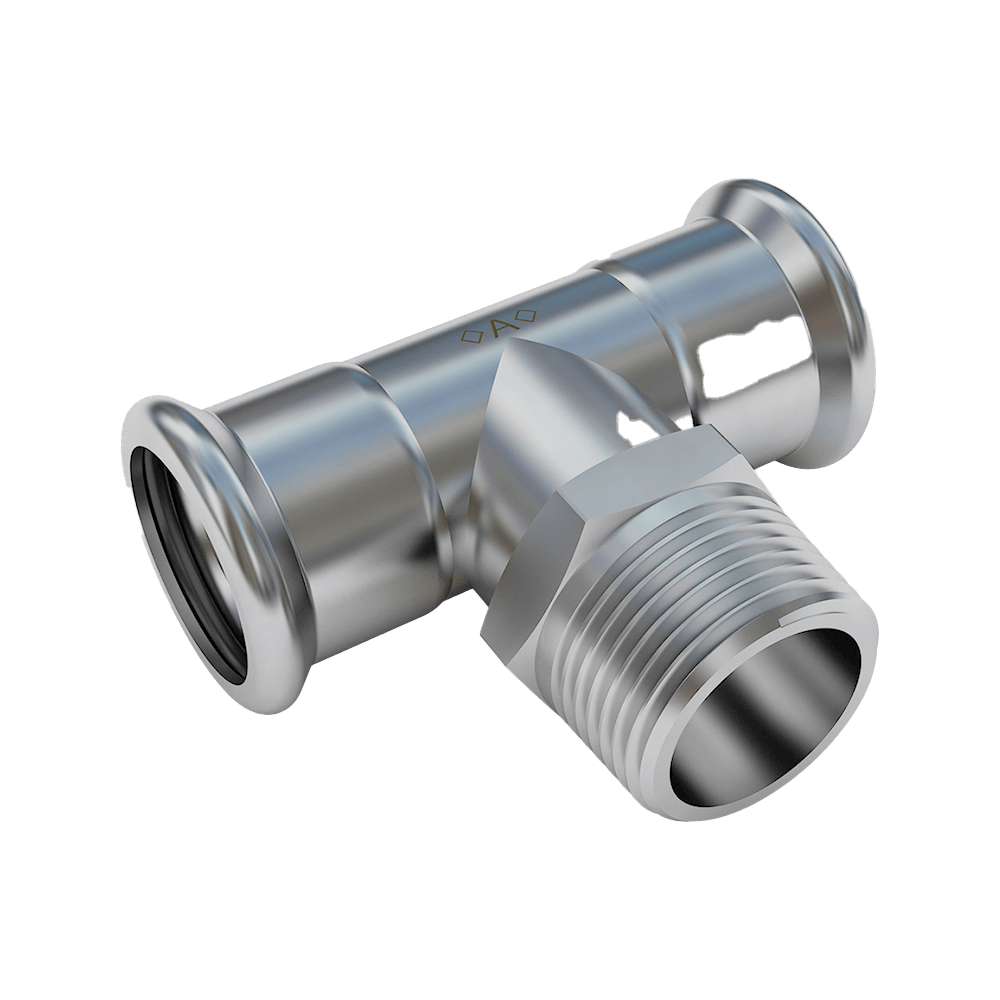

Branch Tee CXCXMi 28 x 1″ x 28mm

Branch Tee CXCXMi in the Press 304 range from Conex Bänninger

Product Code

PSND133G0280828

Size

28 x 1" x 28mm

Installation Type

Press

Enquire
Specification Installation Downloads

Specification

Discover Features
Overview

Product Code

PSND133G0280828

Size

28 x 1" x 28mm

Bag Quantity

5

Maximum Operating Pressure (Bar)

16 Bar

Maximum Operating Pressure (kPa)

1600 kPa

Maximum Operating Pressure (PSI)

232 PSI

Materials

Fitting Material

Stainless Steel

O-Ring/Seal Material

EPDM

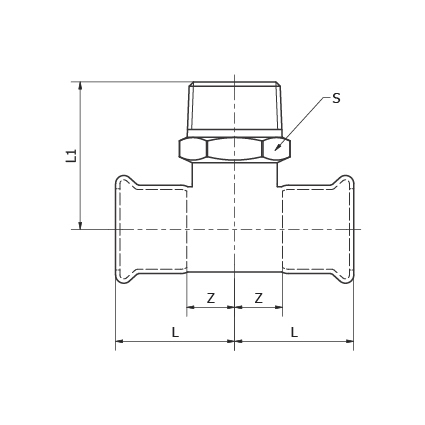

Dimensions (mm)
Discover Features

Installation

＜A＞ Press Inox Installation Sequence

Downloads

  • Tubes INOX 304, 304XL Declaration of conformity
    (
    pdf
    0.233 MB
    )
  • A Press INOX 304 Declaration of Conformity
    (
    pdf
    0.243 MB
    )
  • WRAS APress INOX 304
    (
    pdf
    0.101 MB
    )
  • DVGW APress INOX
    (
    pdf
    0.168 MB
    )
  • APress Inox 304 Technical Brochure
    (
    pdf
    6.401 MB
    )
